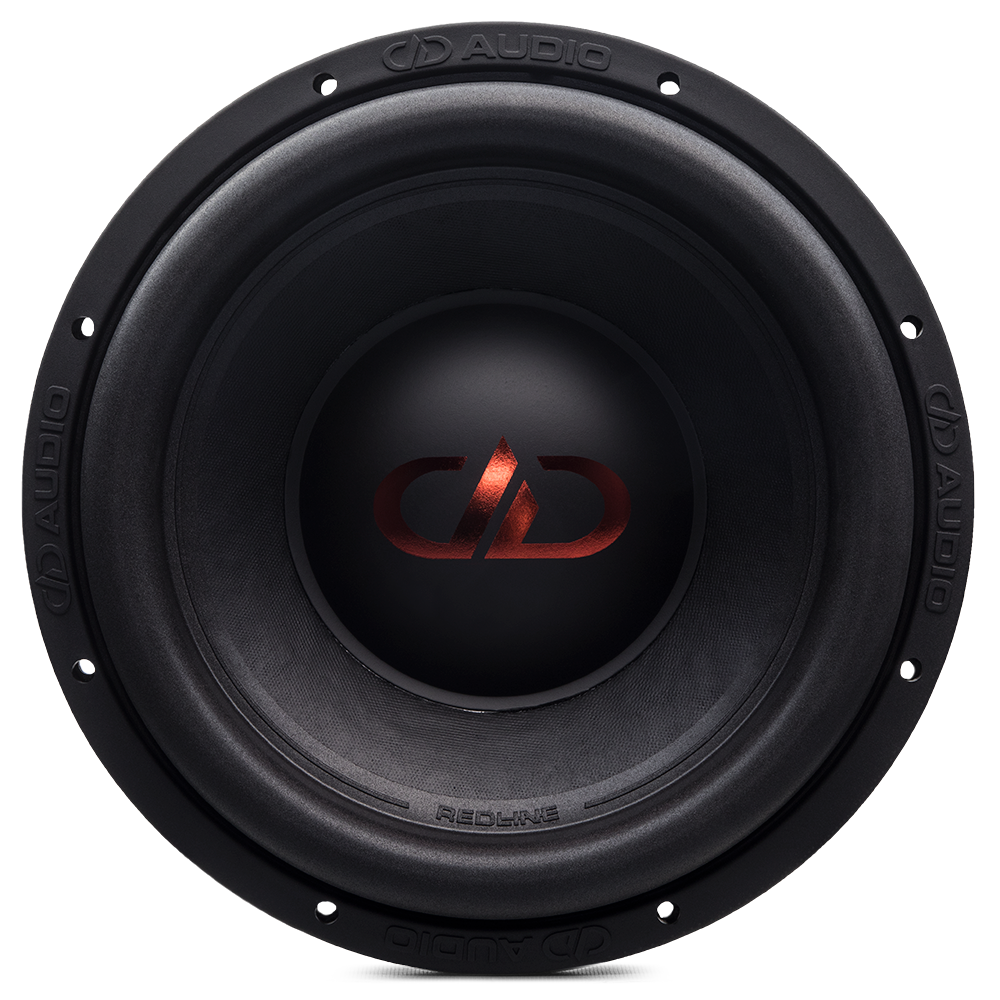

MODEL 712D
Driver Size 12"
Watts RMS 600 - 1200
Peak Power 3600
VCD 3
Impedance D2 / D4
Piston Dia - in 10 1/4
Fs - Hz 28.26
Qms 4.344
Qes 0.4823
Qts 0.4341
Vas - liters 39.64
Xmech - mm 80
Xmax - mm 14
Frame OD - in 12 5/8
Frame OD w/Gasket - in 12 7/8
Mounting Diameter - in 11 3/8
Mounting Depth - in 8 9/16
Motor Diameter - in 7 3/4
Motor Depth - in 3 1/2
Woofer Displacement - cu ft 0.17
Sealed Enclosure - cu ft N/A
Ported Enclosure - cu ft 1.75 - 2.75
Shipping Weight - lbs 38
